BW-200LDR:
High Performance Decarboxylation Reactor
50-200L Crude Oil Decarboxylated in 4-6 hrs *Subject to material composition
Oil-Free Vacuum Pump
Utilizing a powerful oil-free vacuum pump, the BW-200LDR has the ability to remove volatile compounds, leading to an extremely efficient terpene strip prior to distillation.
Anti-foam System
The BW-200LDR includes an anti-foam system that allows for ‘set and forget’ operation; using a sensor, blow off valve, and an overhead mixer with VFD for mixing and foaming prevention.
Electrical
- Certification: UL 508A Certified Industrial Control Panel
- Power: 230VAC, 3ph, 60A
- Plug: SCM563P6W

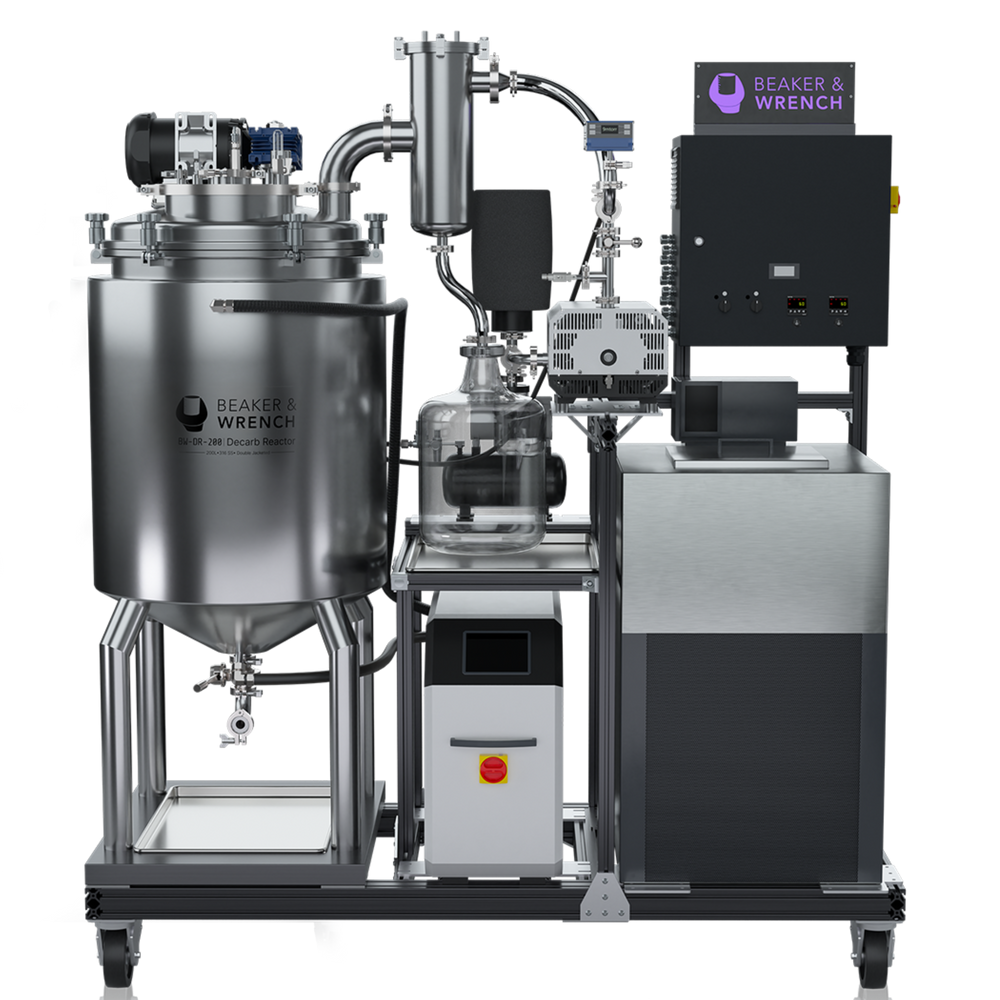

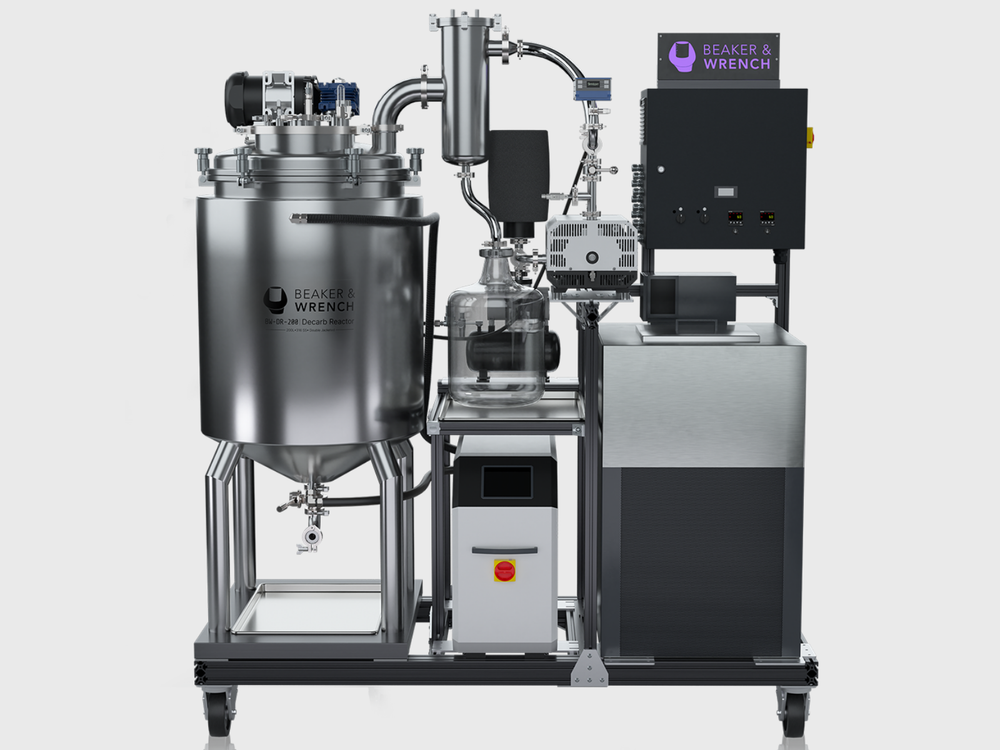

BW-200LDR, 200L Decarboxylation System
Beaker & Wrench’s BW-200LDR is a heated, mixed, vacuum-controlled stainless steel reactor vessel optimized for decarboxylation of 200L of crude extract in 4-6 hours depending on input material.
Heated Hose & Suction Load/ Pressure Unload
Loading and unloading material can be done through a heated hose without opening the reactor. A Clean In Place (CIP) nozzle is integrated into the reactor for easy cleaning.
BW-200LDR Features
Same-Day Install & Training
Dry Screw Vacuum Pump
Anti-Foam System
Suction Load / Pressure Unload
-50°C Refrigerated Condenser
One Plug Power Connection
What Comes With Your Product - Customer Success!
Onboarding
Our team will guide you through the initial delivery and training process so you know what to expect when we arrive.
Install & Training
Learn from the best as we educate your team on best practices and receive onsite, hands-on training from our dedicated professionals.
One Year Warranty & Ongoing Support
Backed by our ISO 9001 certification, our team is always available to reinforce your lab with help and support.

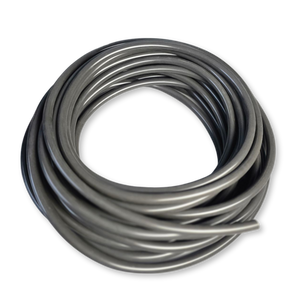

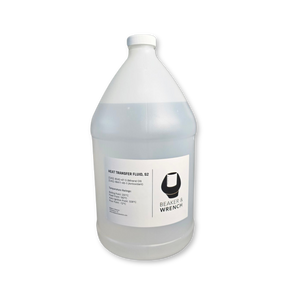

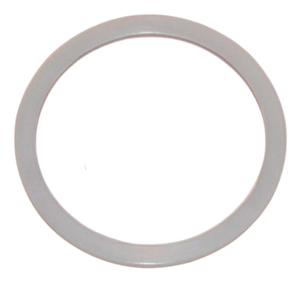

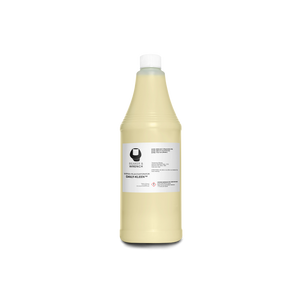

Accessory Box
Your order comes with everything you need to get started on Day One! Including:
Specifications
Beaker & Wrench’s BW-200LDR is a heated, mixed, vacuum-controlled stainless steel reactor vessel optimized for decarboxylation of 200L of crude extract in 4-6 hours depending on input material. Utilizing a powerful oil-free vacuum pump, the BW-200LDR has the ability to remove volatile compounds, leading to an extremely efficient terpene strip prior to distillation. The BW-200LDR includes an anti-foam system that allows for ‘set and forget’ operation; using a sensor, blow off valve, and an overhead mixer with VFD for mixing and foaming prevention. There is a removable mixer shaft for easy tank access as well as a level sensor for easy filling. Loading and unloading material can be done through a heated hose without opening the reactor. A Clean In Place (CIP) nozzle is integrated into the reactor for easy cleaning. If you need to process smaller volumes of material, Beaker & Wrench also offers the BW-40LDR as well as custom equipment.
BW-200LDR
cUL-508A Certified Industrial Control Panel
SCM563P6W 60Hz
230VAC, 3ph, 60A
4-6 hours for 200L of material
316 Stainless Steel
-55°C Cold Trap (3.3kW at 0°C)
7mtorr Ultimate Vacuum (15 CFM)
75" [1.9m] x 33" [0.8m] x 81" [2.1m]
