BW-SR50:

The Only True Plug N'Play Solvent Recovery

Solvent Recovery @ 10% Residual Solvent: 50 L/hr Ethanol, 100 L/hr Heptane, 20 L/hr Water (inquire within about other solvents)

Residual Solvent In Oil Content: 5-25% (User Selectable)

System Features

  • Heat Pump Driven Distillation
  • Self-Contained System
  • Continuous Flow Design
  • No External Heaters or Chillers Required

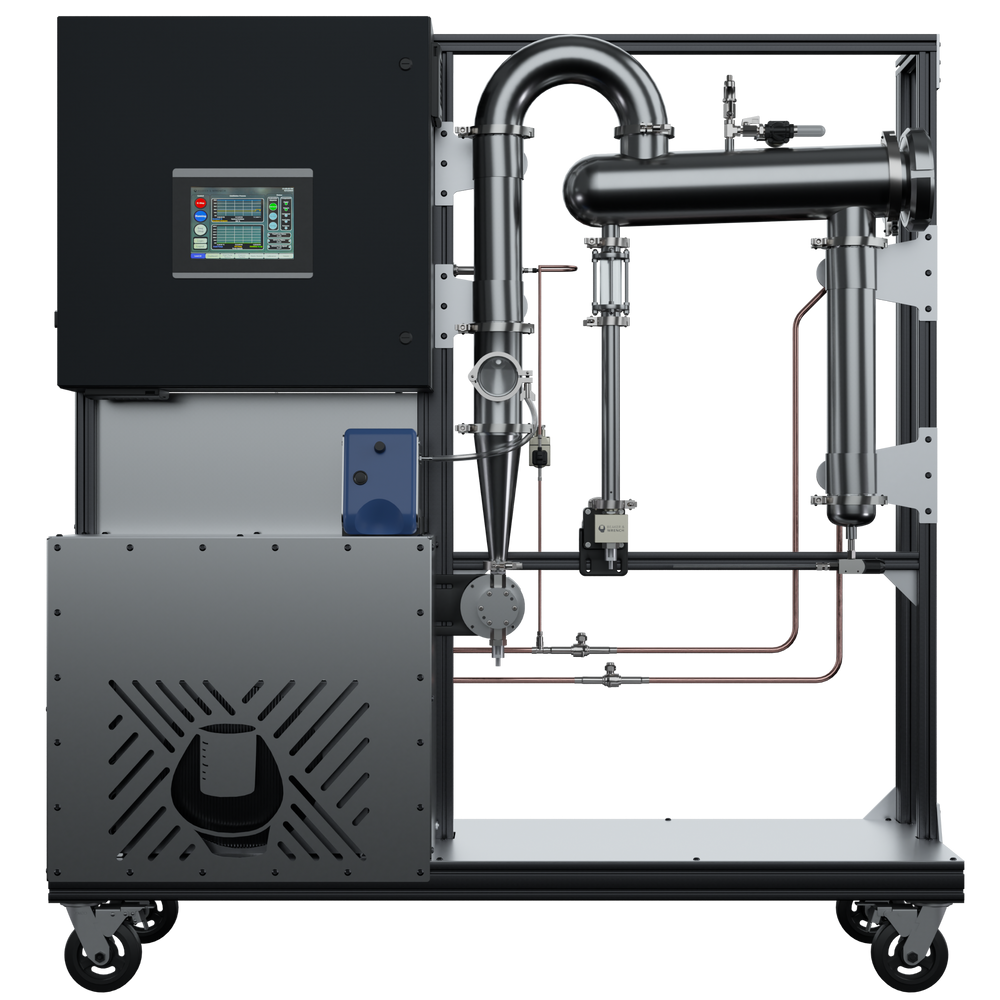

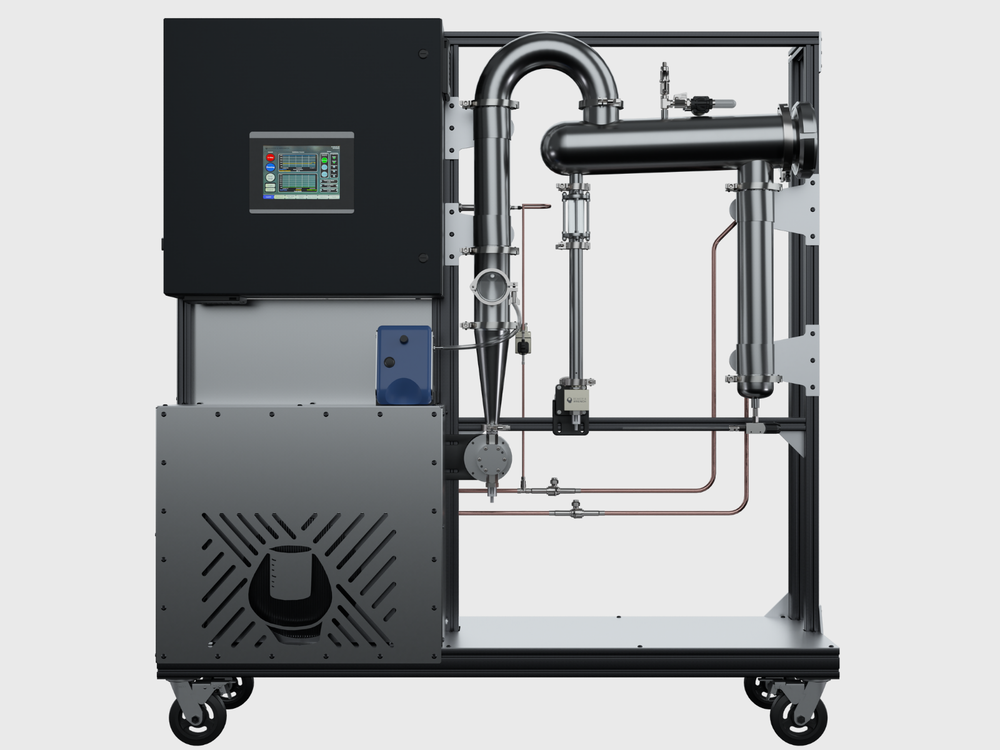

BW-SR50, Solvent Recovery System

  • Process Components Material: 316SS
  • Solvent Recovery Rate at 10% Residual Solvent: 50 L/hr Ethanol, 100 L/hr Heptane, 20 L/hr Water
  • Residual Solvent In Oil Content: 5-25% (User Selectable)

Electrical

  • Certification: UL 508A Certified Industrial Control Panel
  • Power: 240VAC, 1ph, 60Hz
  • Plug: NEMA14-30
  • Main Circuit Breaker: 32A
  • Nominal Current: 18A

Maintenance

  • Can be easily cleaned using automated Clean-in-Place (CIP) procedures

10" HMI With Custom User Interface

  • Touchscreen: Included
  • Data Logging: Included
  • Remote Access: Included for troubleshooting
  • Start-Up: Programmable one button start-up

BW-SR50 Features

Same-Day Install & Training

One Button Automated Start-Up

80% Energy Savings*

*Compared to standard falling film evaporators

Low Maintenance

No membrane

Continous Flow Design

One Plug Power Connection

What Comes With Your Product - Customer Success!

Onboarding

Our team will guide you through the initial delivery and training process so you know what to expect when we arrive.

Install & Training

Learn from the best as we educate your team on best practices and receive onsite, hands-on training from our dedicated professionals.

One Year Warranty & Ongoing Support

Backed by our ISO 9001 certification, our team is always available to reinforce your lab with help and support.

Specifications

The BW-SR50 is ready to roll through your door and start running the same day you set it up—no hassle, no delays. It’s a self-contained, one-button start-up system that uses a patented, heat pump-driven distillation process-eliminating external heaters and chillers while consuming a fraction of the power required by a falling film.This unit combines large energy-saving capacity with a convenient single-plug design, and programmable automation making it perfect for businesses aiming to streamline their operations.

Product
BW-SR50
Process Components

316 Stainless Steel

Plug

NEMA 14-30
