BW-6WFE:
Industry Leading Wiped Film
3-5 L/hour Finished Distillate 5-10L/hour Terpene Removal *Subject to material composition
Mechanical Vacuum Pump
- Type: Rotary Vane Pump (BWRV-48)*
- Pumping Speed: 36CFM
*Dry Screw Pump available upon request

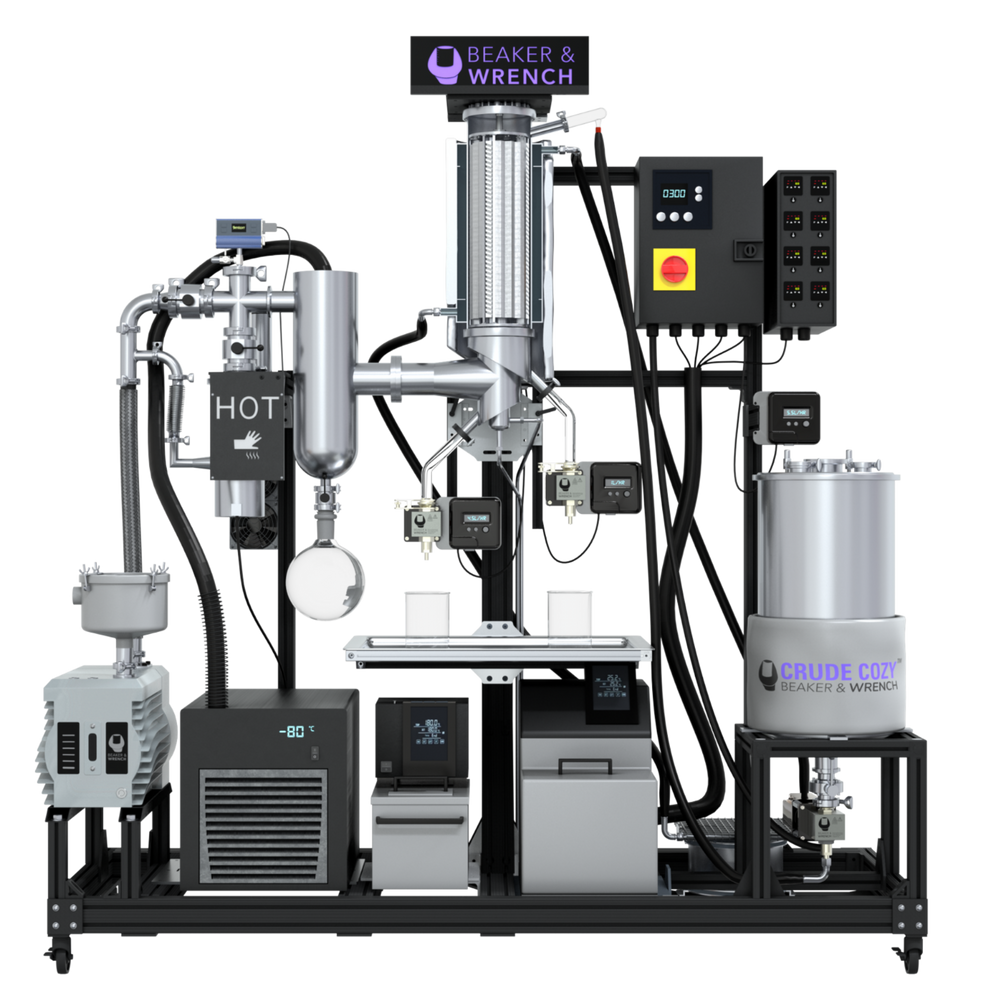

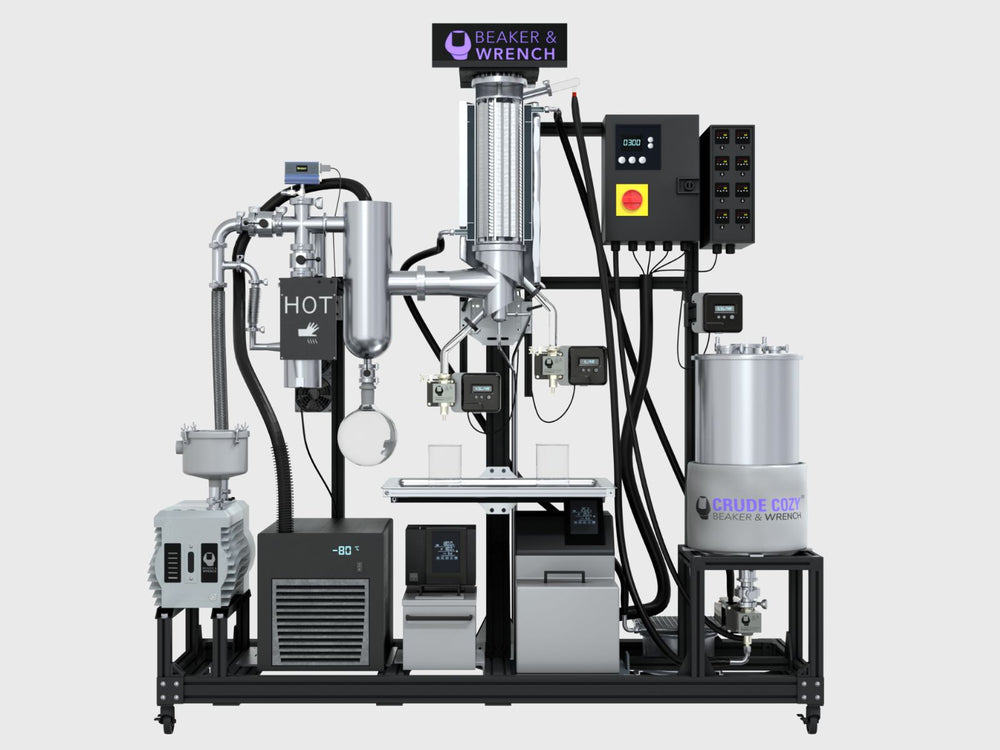

BW-6WFE, 6" Wiped Film Evaporator
- Evaporation Surface Area: 2.70ft² (0.25m²)
- Material: 316SS
- Heat Source: Oil Jacket (Baffled)
- Wipers: PTFE
- Mesh Baffles: 316SS
Electrical
- Certification: UL 508A Certified Industrial Control Panel
- Power: 240VAC, 1ph, Neutral 60Hz
- Plug: NEMA14-50
- External Circuit Breaker: 50A
- Nominal Current: 15A
Feed Tank & Gear Pumps
- Feed Tank: Large capacity of 40L
- Gear Pumps: Heated Inlet & Outlet Gear Pumps, allow for precision-controlled continuous flow
Cold Trap & High Vacuum Pump
- Cold Trap Temperature Range:
-90°C to 30°C
- High Vacuum Pump: Diffusion Pump*
- Pumping Speed: 300CFM
*Turbo Pump available upon request
BW-6WFE Features
Same-Day Install & Training
2-Year Warranty & Ongoing Support
Multi-Point Temp Control
SinterTek Baffles™
Gear Feed & Outlet Pumps
One Plug Power Connection
What Comes With Your Product - Customer Success!
Onboarding
Our team will guide you through the initial delivery and training process so you know what to expect when we arrive.
Install & Training
Learn from the best as we educate your team on best practices and receive onsite, hands-on training from our dedicated professionals.
2-Year Warranty & Ongoing Support
Backed by our ISO 9001 certification, our team is always available to reinforce your lab with help and support.

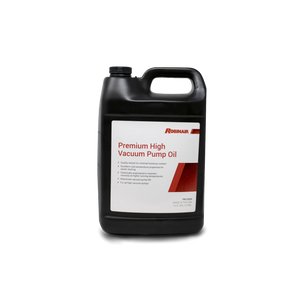

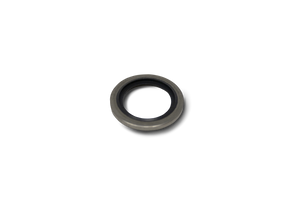

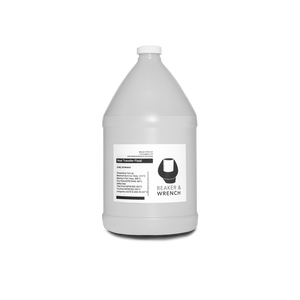

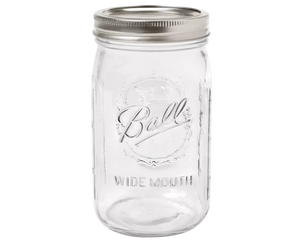

Accessory Box
Your order comes with everything you need to get started on Day One! Including:
Specifications
Our automated Wiped-Film Evaporation Turn-Key System will help maximize your product outcomes with greater productivity and maximum purity. Available in two models, the BW-6WFE-RVD features a Rotary Vane Pump paired with a Diffusion Pump for high vacuum performance, while the BW-6WFE-ST is equipped with a Scroll Pump and a Turbo Pump for enhanced efficiency. Both models are CE certified and include a cUL-508A Certified Industrial Control Panel, ensuring top-tier safety and reliability.
Both Models
cUL-508A Certified Industrial Control Panel and CE certified
240VAC, 1ph, Neutral 60Hz
2.70ft² [0.25m²]
Rotary Vane Pump (RVD model) or Scroll Pump (ST model)
Diffusion Pump (RVD model) or Turbo Pump (ST model)
50A
15A
NEMA 14-50 Socket, 1P4W (North America) or 360R6W Socket, 1P3W (EU)
40L
-90°C to 30°C
82.5"[2.01m] x 36.5"[0.93m] x 87.5"[2.22m]
1070lbs [485kg]
